Description

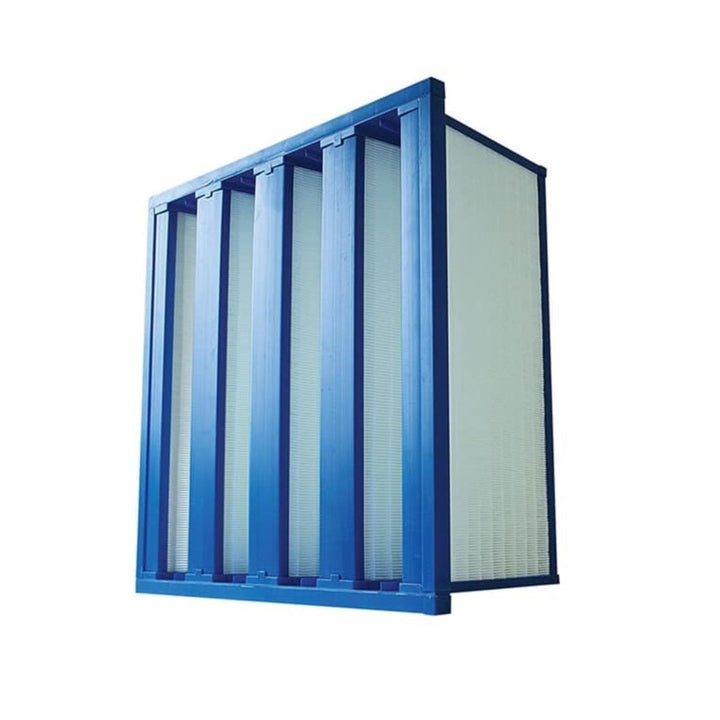

V-BANK MICROGLASS FILTER
Mini-Pleat Design. Maximum Airflow, Lower Energy Costs

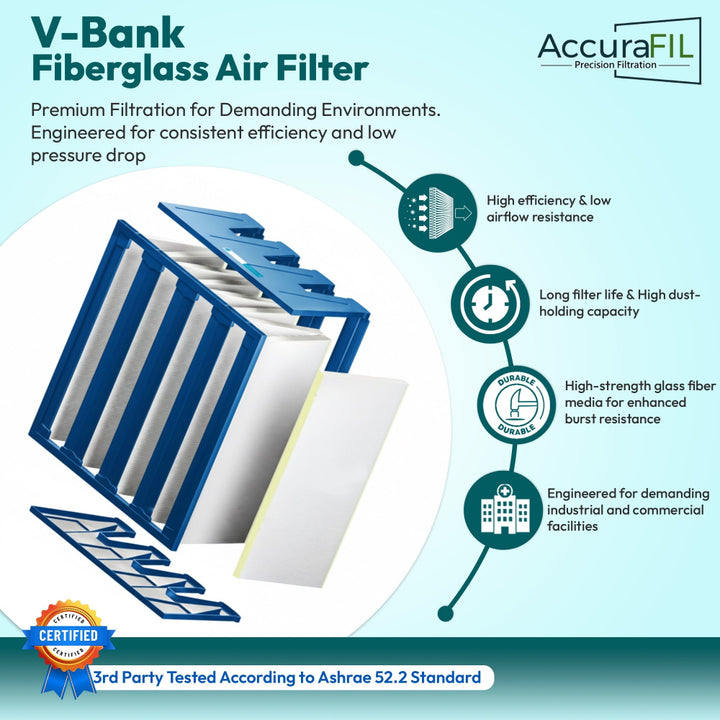

Advanced Filtration Technology
- V-Bank air filters provide better alternative to bag filters and box-type filters.
- Features a large filter surface with a compact and robust construction.
- Combines high-strength glass fiber media and polyurethane potting for enhanced burst resistance.

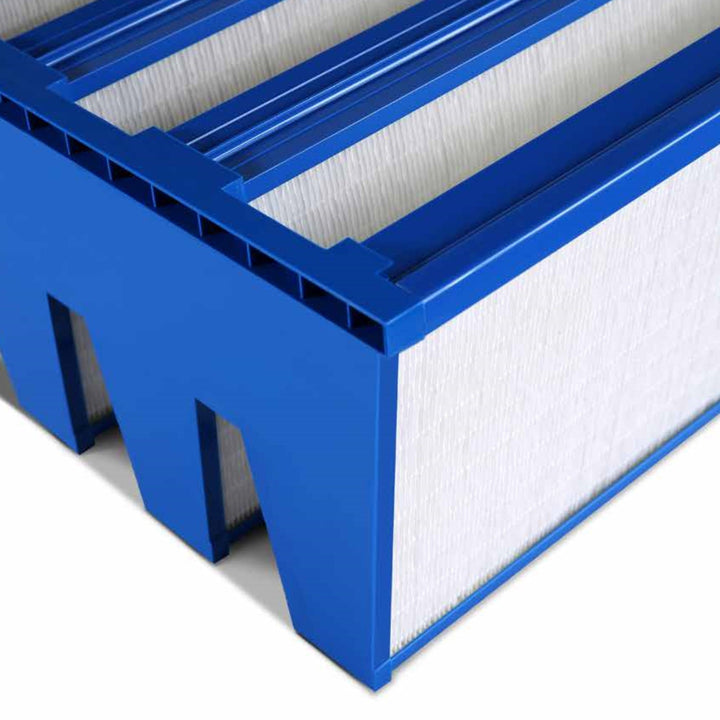

Superior Construction
- Mini-pleat design boosts efficiency—greater airflow, lower energy costs.
- Deeper pleats result in longer filter life and reduce the frequency of change-outs.
- Non-metallic, fully incinerable design for eco-friendly disposal
Reliable Performance
- Compact, robust build with a large surface area for longer life and lower operating costs.
- Lightweight, easy-to-install rigid box design with reliable performance
Technical Specifications
| Specification | Details |
|---|---|
| Type | V – Bank, Rigid Pocket |
| Filter Grades (EN 779) | M6, F7, F8, F9 |
| Filter Grades (ASHRAE 52.2) | MERV 11, MERV 13, MERV 14, MERV 15 |
| Filter Media | Synthetic media |
| Media Separator | Thermoplastic bead separators (Hot Melt Beads) |
| Frame | Plastic (ABS) with 20 mm Header |
| Maximum Temperature | 80 °C |
| Final Pressure Drop | 1.50” wg |
| Maximum Recommended Pressure Drop | 2” wg |
| Recommended Maximum Operating Velocity | 625fpm / 3.175 m/s |
High Airflow Low Resistance Energy Efficient Easy to Install
V-BANK MICROGLASS FILTER _ (12x24x12) _ Pack of 2 Filters
