Description

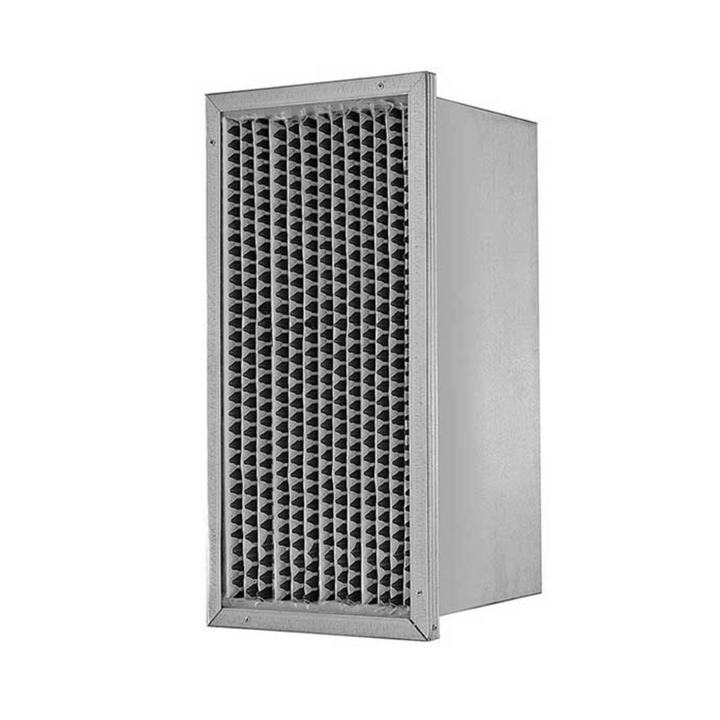

HIGH-EFFICIENCY ASHRAE CELL FILTER
Deep-Pleated, Extended-Surface Design for Superior Dust Capture and Airflow
Advanced Filtration Technology
- Made with glass fine microfibers to ensure consistent efficiency throughout its lifespan.
- Suitable for a wide range of conditions, including high humidity and Variable Air Volume (VAV) systems.
Superior Construction
- Available frame constructions include single header, doubleheader, or box-style options.
- The compact design allows for easy replacement of traditional pocket-style filters.
Reliable Performance
- It is built to withstand extreme conditions and offers enhanced filter strength and reliability.
- It is an excellent choice for package systems, air handlers, split systems, built-up filter banks, and free-standing units.
Technical Specifications
| Specification | Details |
|---|---|
| Filter Type | High-Efficiency Extended Surface Deep Pleated Filter |
| Filter Grades (ASHRAE 52.2) | MERV 11, MERV 13, MERV 14 |
| Filter Depth | 6", 12" |
| Efficiency @ 0.3μ | 99.97% / 99.99% / 99.999% |
| Filter Media | Glass Fine Microfibers |
| Media Separator | Hemmed-edge Aluminum Corrugated Separator |
| Frame | GI / SS / Al / MDF |
| Maximum Temperature | 80°C (176°F) |
| Final Pressure Drop | 1.40" wg (Recommended) |
High Efficiency Low Pressure Drop Versatile Use 80°C Max Temp
ASHRAE CELL FILTER _ 12x24x12 _ Pack of 2 Filters
