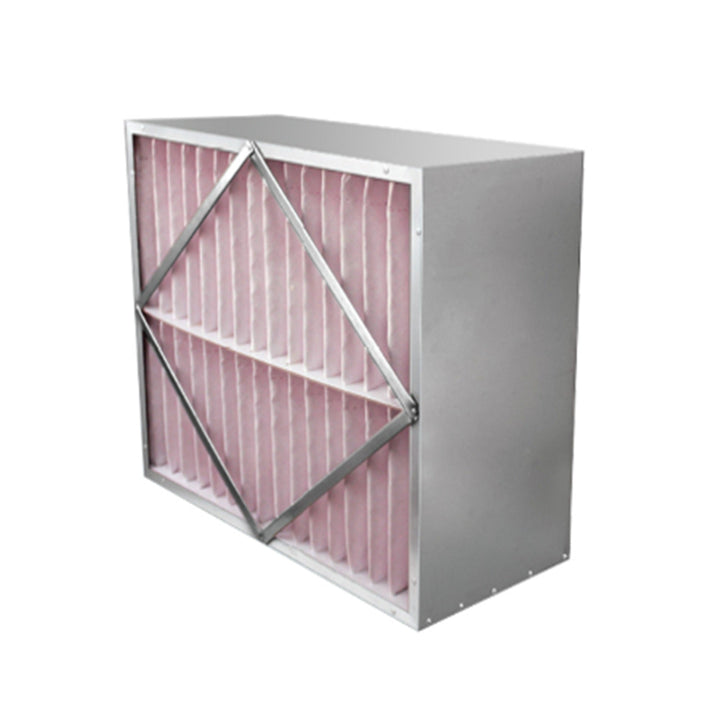

AccuraFil synthetic rigid cell air filter with pink deep pleated media and a metal frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.

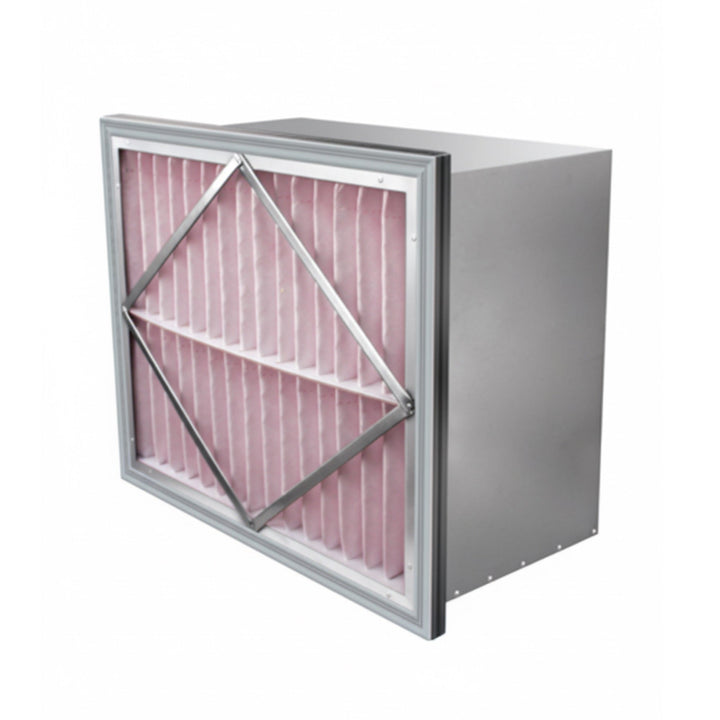

AccuraFil synthetic rigid cell air filter with pink deep pleated media and a metal frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.
AccuraFil synthetic rigid cell air filter with pink deep pleated media and a metal frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.

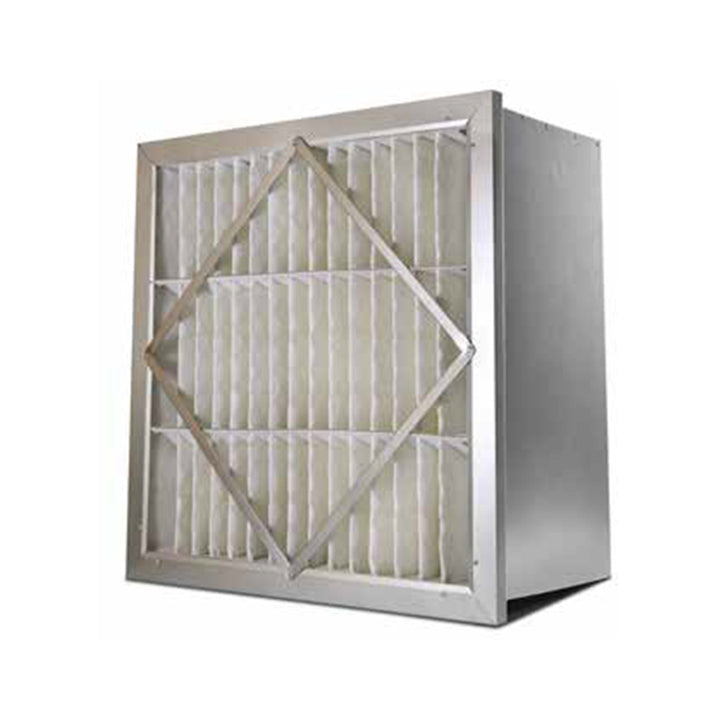

AccuraFil synthetic rigid cell air filter with white deep pleated media and a metal frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.

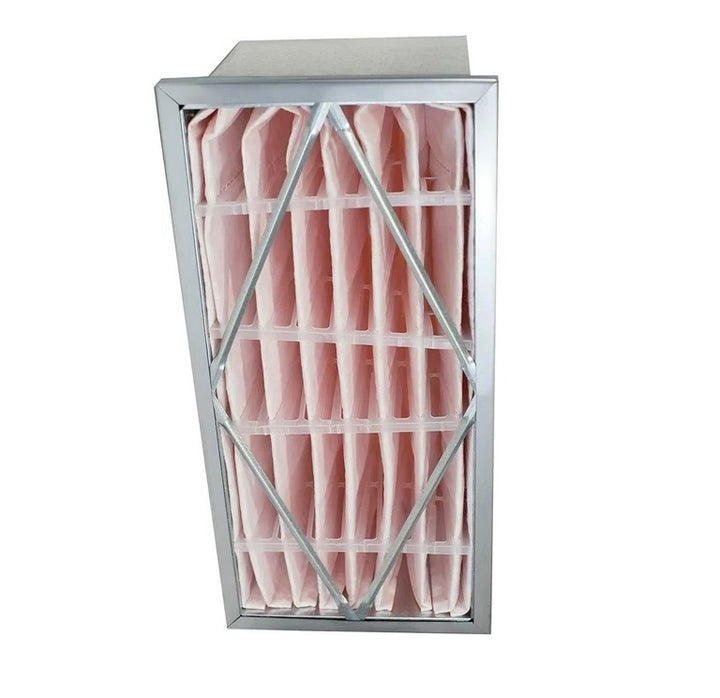

AccuraFil synthetic rigid cell air filter with deep pleat and a metal frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.

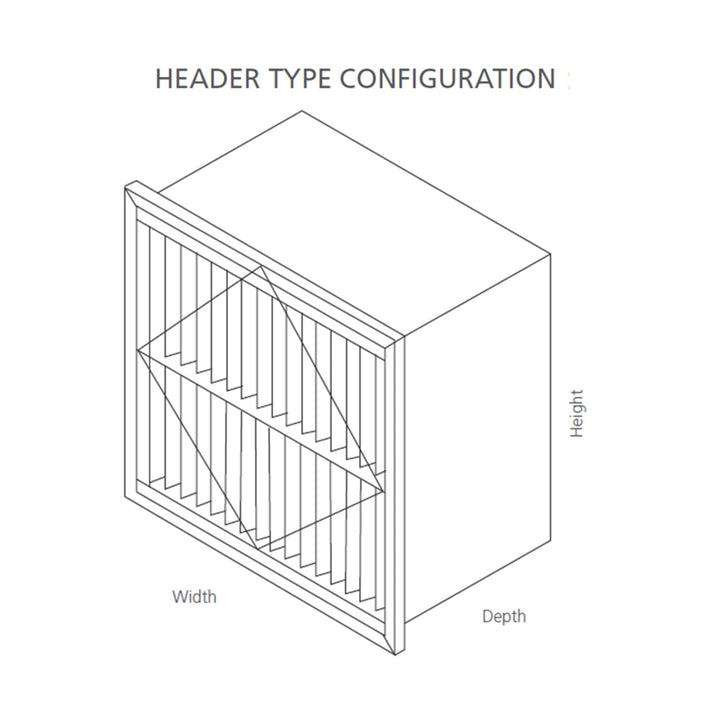

Isometric view of a rigid Cell single header Air filter with deep plated synthetic filter media with labeled dimensions on a white background.

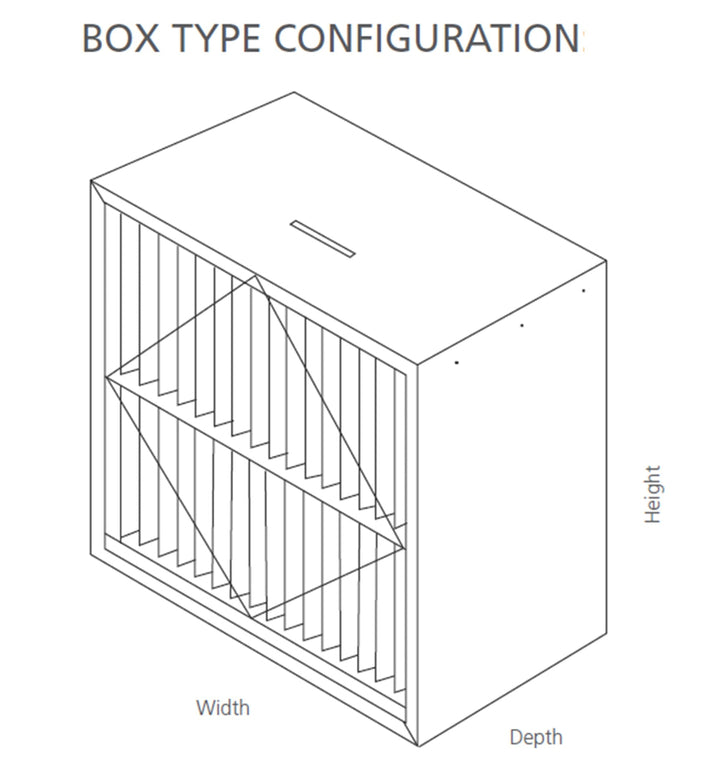

Isometric view of a rigid Cell Box Air filter with deep plated synthetic filter media with labeled dimensions on a white background.

RIGID-PAC FILTER _ 12x24x12 _ Pack of 2 Filters

$192.50From $154.00

Nominal Dimensions: W x H x D (inches): 24 x 12 x 12

Nominal Dimensions: W x H x D (inches): 24 x 12 x 12
24 x 12 x 12

Filter Classification (Ashrae 52.2): Choose an option

Filter Classification (Ashrae 52.2): Choose an option
MERV 11/65%
MERV 13/85%
MERV 14/95%
MERV 15/98%

Frame Design: Choose an option

Frame Design: Choose an option
Single Header
Box
Add to Wishlist

icons of acceptable form of secured payment
Description

RIGID CELL BOX FILTER

Durable Design. Superior Filtration

🔬

Advanced Filtration Technology

  • Ideal for use in variable air volume (VAV) systems and applications with turbulent airflow.
  • High-density melt-blown media with excellent dust-holding capacity.
  • Multi-layered, non-shedding, water-resistant media.
⚙️

Superior Construction

  • Enhanced performance and durability through a rigid design concept.
  • Features an aerodynamic filter design with radial V-pleats and die-cut pleat stabilizers for increased stability.
  • Available in a variety of standard sizes.
🛡️

Reliable Performance

  • The deep pleated media pack is securely enclosed within a metal frame, ensuring a leak-free operation.
  • Maintains consistent performance across different operating conditions.
  • Replaces conventional pocket and box-type filters.

Technical Specifications

Specification Details
Type Extended surface deep pleated filter
Filter Grades (EN 779:) M6, F7, F8, F9
Filter Grades (ASHRAE 52.2) MERV 12, MERV 13, MERV 14, MERV 15
Filter Media Synthetic media
Media Separator Expanded Metal Mesh
Frame GI / SS / Al
Maximum Temperature 80 °C
Final Pressure Drop 1.50” wg
Rigid Design Synthetic Media Ideal for Variable Airflow Aerodynamic Pleats
