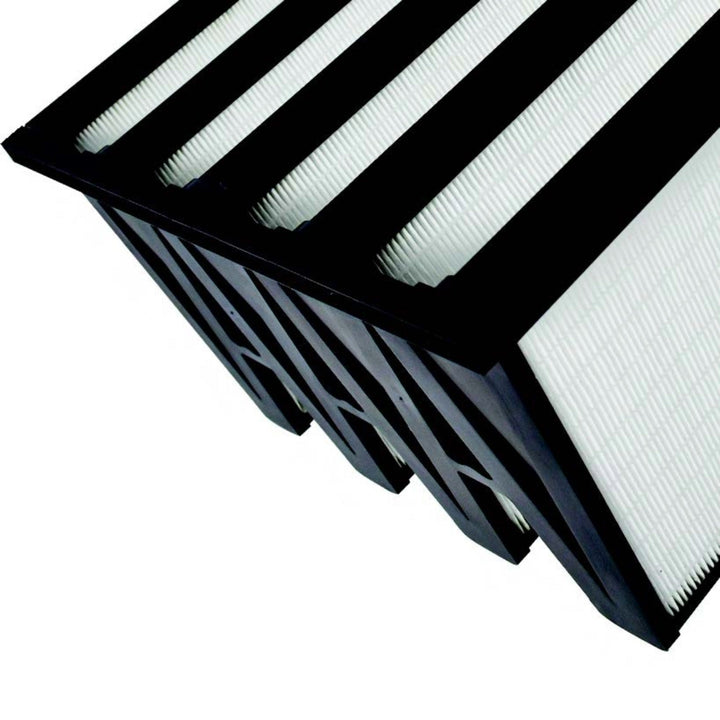

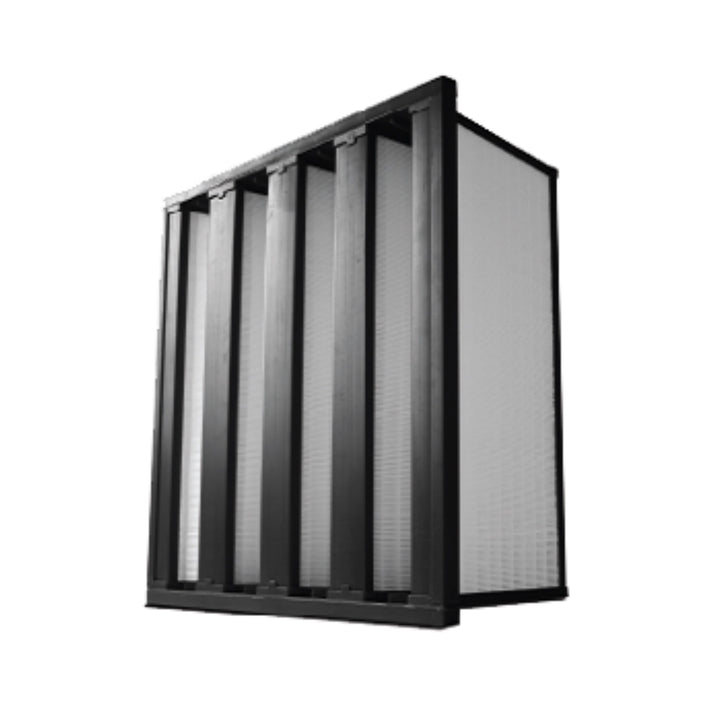

AccuraFil V-bank air filter with four V-shaped mini-pleat panels and a black frame, designed for commercial and industrial facilities like hospitals and cleanrooms.
AccuraFil V-bank air filter with four V-shaped mini-pleat panels and a black frame, designed for commercial and industrial facilities like hospitals and cleanrooms.

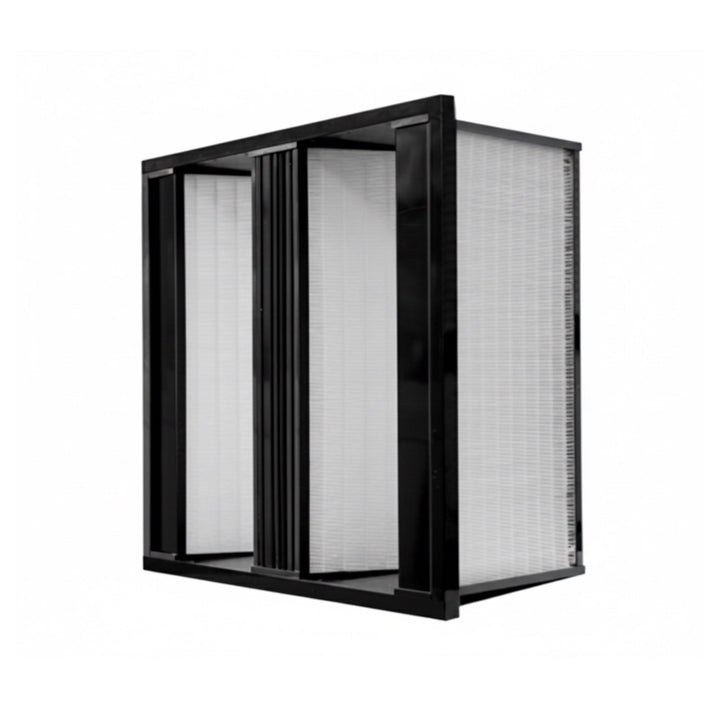

AccuraFil V-bank air filter with two V-shaped mini-pleat panels and a black frame, designed for commercial and industrial facilities like hospitals and cleanrooms.

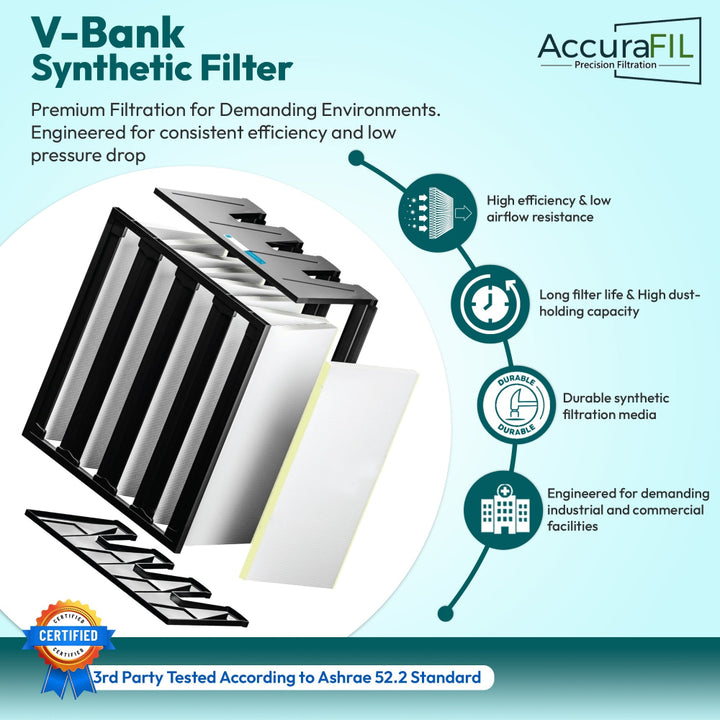

Exploded 3D model of an AccuraFIL V-Bank Synthetic Air Filter, detailing its components and features for commercial and industrial facilities like hospitals and cleanrooms.

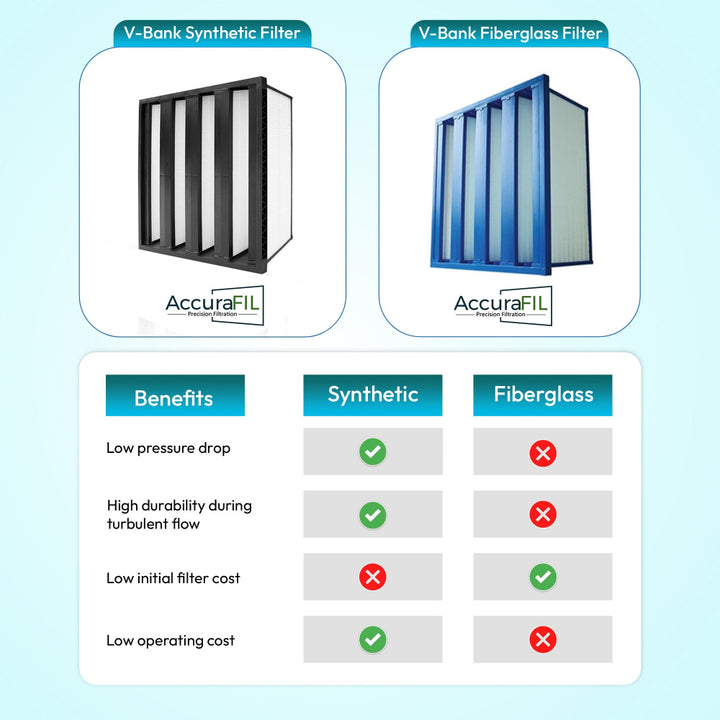

Comparison chart of AccuraFil V-Bank Synthetic and Fiberglass filters, showing key specifications for industrial and commercial use.
Isometric view diagram of an AccuraFil four-V bank air filter, designed for industrial facilities such as hospitals, cleanrooms, and data centers.

V-BANK SYNTHETIC FILTER

$305.80From $210.24

Nominal Dimensions: W x H x D (inches): Choose an option

Nominal Dimensions: W x H x D (inches): Choose an option
24 x 20 x 12
24 x 24 x 12

Filter Classification (Ashrae 52.2): MERV 15

Filter Classification (Ashrae 52.2): MERV 15
MERV 15

No. of V-Banks: 4V

No. of V-Banks: 4V
4V
Add to Wishlist
Availability: In Stock Pre order Out of stock

Description
MINI PLEAT RIGID BOX FILTER

V-BANK SYSNTHETIC FILTER

Mini-Pleat Design. Maximum Airflow, Lower Energy Costs

🔬

Advanced Filtration Technology

  • V-Bank air filters provide better alternative to bag filters and box-type filters.
  • Features a large filter surface with a compact and robust construction.
  • High-efficiency synthetic filtration engineered for maximum airflow and minimal resistance.
⚙️

Superior Construction

  • Mini-pleat design boosts efficiency—greater airflow, lower energy costs.
  • Deeper pleats result in longer filter life and reduce the frequency of change-outs.
  • Non-metallic, fully incinerable design for eco-friendly disposal
🛡️

Reliable Performance

  • Designed to maintain performance even under turbulent conditions.
  • Compact, robust build with a large surface area for longer life and lower operating costs.

Technical Specifications

Specification Details
Type V – Bank, Rigid Pocket
Filter Grades (EN 779) M6, F7, F8, F9
Filter Grades (ASHRAE 52.2) MERV 11, MERV 13, MERV 14, MERV 15
Filter Media Synthetic media
Media Separator Thermoplastic bead separators (Hot Melt Beads)
Frame Plastic (ABS) with 20 mm Header
Maximum Temperature 80 °C
Final Pressure Drop 1.50” wg
Maximum Recommended Pressure Drop 2” wg
Recommended Maximum Operating Velocity 625fpm / 3.175 m/s
High Airflow Low Resistance Energy Efficient Durable Synthetic Media
