Description

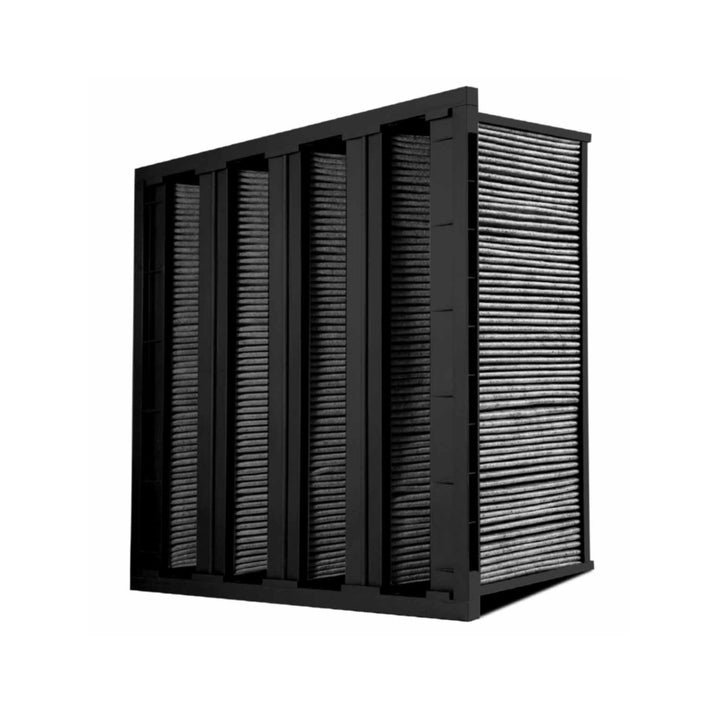

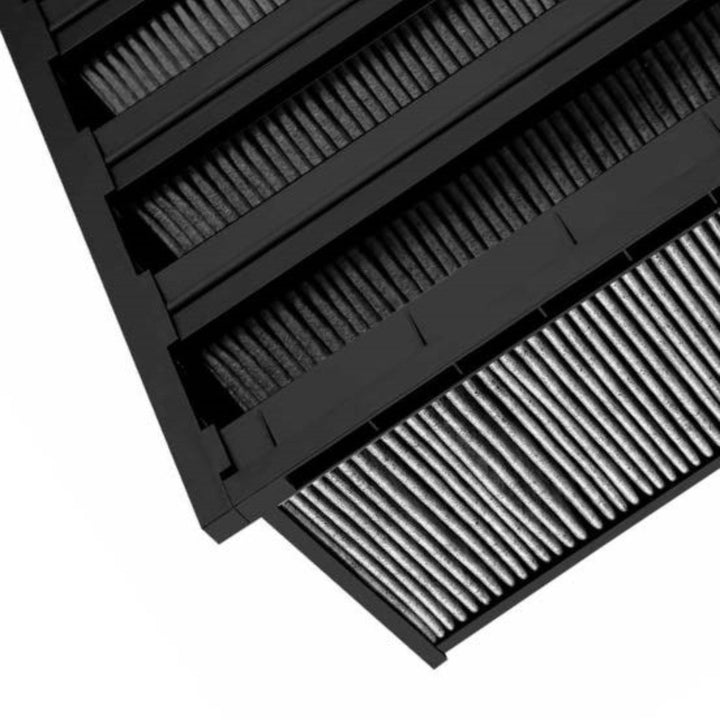

V-BANK CARBON FILTER
V-BANK CARBON-BLEND FILTER
Dual Protection: Particulate + Molecular Filtration.
Advanced Filtration Technology
- Carbon-Blend V-Bank Filters deliver the perfect combination of high-efficiency particulate and molecular filtration in a single solution.
- Utilizes a 50/50 blend of carbon and KMnO4 micro-granulate adsorbent chemical media.
- Removes a wide range of compounds, including VOCs, vehicle exhaust, SOx, NOx, Ammonia, Ozone, and other gases.
Superior Construction
- Features corrosion-free, non-metal construction with an ABS plastic frame.
- The header and cell sides provide sturdy construction, preventing damage during shipping, handling, and operation.
- Designed with a 25 mm / 20 mm peripheral header for easy installation.
Reliable Performance
- Energy-efficient mini-pleated design offers a large surface area with low pressure drop.
- Contains 60% CTC activated carbon/KMnO4 Blend micro granules for enhanced filtration.
- Densely packed carbon micro granules deliver a large surface area, ensuring high adsorption spontaneity.
Technical Specifications
| Specification | Details |
|---|---|
| Type | V-BANK BOX FILTER |
| Filter Grades (As per ASHRAE 52.2) | MERV 10 & MERV 13 |
| Filter Depth | 12” |
| Header Construction | 20 mm thick Header frame |
| Filter Media | Micro-granulate adsorbent Carbon Particles embedded in dual layer synthetic filter media |
| Frame | ABS Plastic |
| Maximum Temperature | 55 °C |
| Final Pressure Drop | 1.50” wg (Recommended) |
Carbon/KMnO4 Blend
VOC Removal
ABS Plastic Frame
Molecular Filtration
V-BANK CARBON-BLEND FILTER
