Air Panel Filter | Mini-Pleat Synthetic Panel Filter

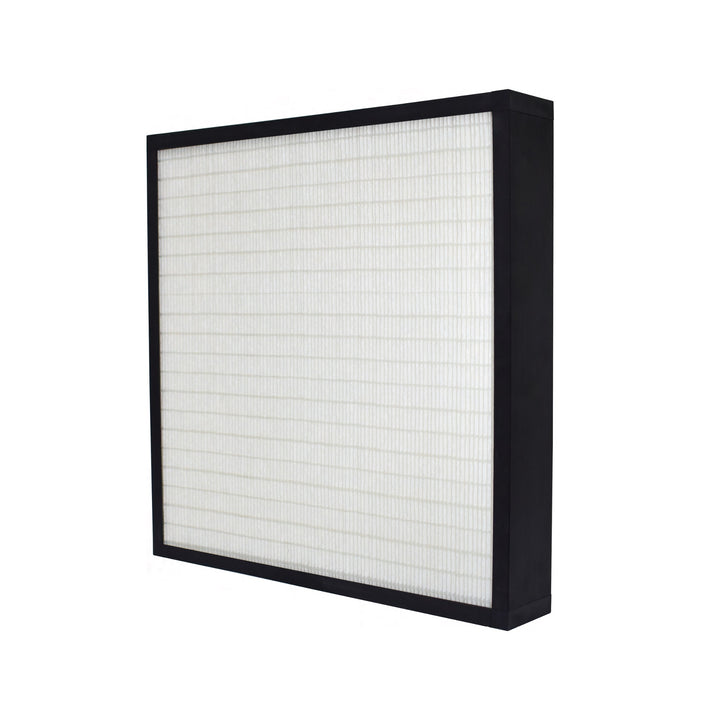

AccuraFil synthetic mini pleat air filter with a black plastic single header frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.

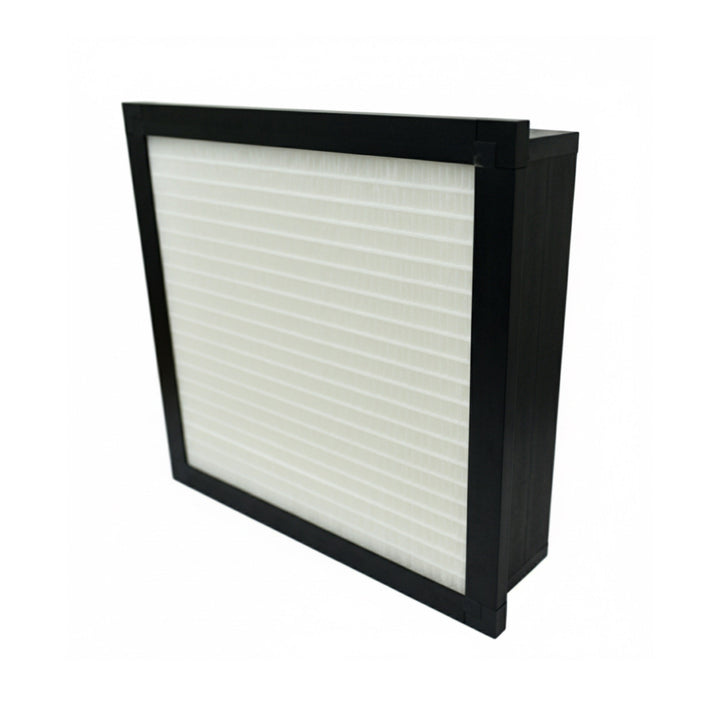

AccuraFil synthetic mini pleat air filter with a black plastic frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.

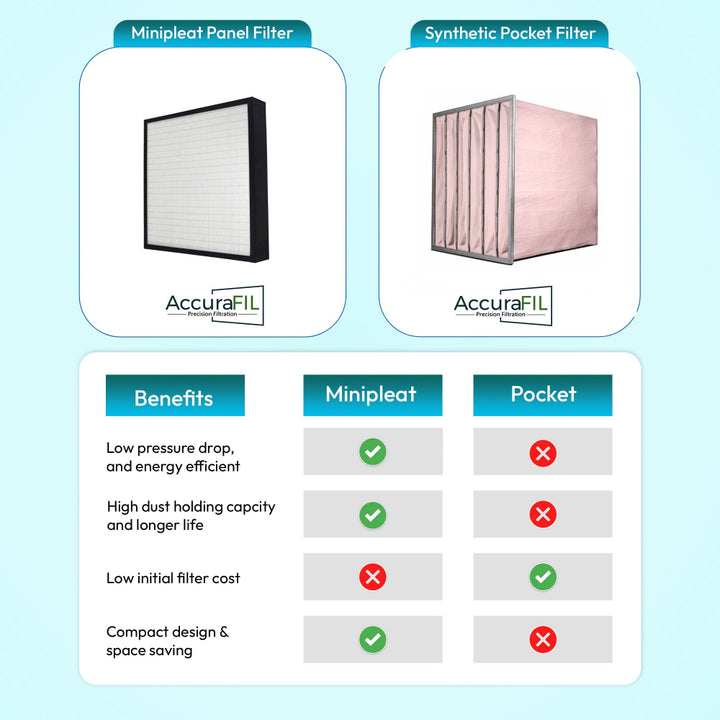

Comparison chart of Minipleat Panel Filter and Synthetic Pocket Filter with AccuraFIL branding, and product properties and features
Diagram of a accurafil mini pleat filter with labeled dimensions on a white background

MINI-PLEAT PANEL (Plastic Frame) _ 4" _ Pack of 3 Filters

$556.88From $340.31

Nominal Dimensions: W x H (inches): Choose an option

Nominal Dimensions: W x H (inches): Choose an option
16 x 20
16 x 24
16 x 25
20 x 20
20 x 24
20 x 25
24 x 24

Nominal Depth (inch): 4

Nominal Depth (inch): 4
4

Filter Classification & Design: Choose an option

Filter Classification & Design: Choose an option
MERV 15 / Box
MERV 15 / Single Header
MERV 14 / Single Header
Add to Wishlist

icons of acceptable form of secured payment
Description

MINI-PLEAT SYNTHETIC PANEL FILTER

Ultra-Compact, Space-Saving Design for Maximum Efficiency

🔬

Advanced Filtration Technology

  • High-efficiency filtration available in 1”, 2" or 4" depth, replacing bulky bag and box style filters.
  • Achieves up to MERV 15 filter classification as per ASHRAE standard 52.2.
  • Drastically improves indoor air quality by replacing low-efficiency filters.
⚙️

Superior Construction

  • Utilizes extended surface high-efficiency mini-pleat filter with robust, corrosion and mold-resistant filter frames.
  • Compact design reduces handling, storage, and shipping costs.
🛡️

Reliable Performance

  • Mini-pleat media packing offers maximum air flowrate per filter.
  • Ultra-compact slim line design provides minimum resistance and maximum dust holding capacity while lowering operating cost.

Technical Specifications

Specification Details
Type High-Efficiency Mini-pleat Panel Filter
Filter Grades (EN 779:) F7, F8, F9
Filter Grades (ASHRAE 52.2) MERV 13, MERV 14, MERV 15
Filter Depth 1”, 2”, 4”
Filter Media Synthetic Media
Media Separator Hot melt bead
Frame Material Plastic / GI / Al
Frame Design Box / Header type (20mm)
Maximum Temperature 160 °F (71 °C)
Maximum Pressure Drop 1.50” wg (Recommended)
High Efficiency Synthetic Media Minipleat Panel Slim Design
